advics

HIGH PERFORMANCE BRAKE KITS

HIGH PERFORMANCE
BRAKE KITS

Through its history ADVICS has developed the genuine brakes not only for passenger cars but also for competing in motorsports.

ADVICS high performance brake kits have been made with experience forged in endurance races like Nürburgring 24 Hours and provide an ultimate brake performance not just on a race track, but also on the public roads as well.

HIGH PERFORMANCE BRAKE KITS

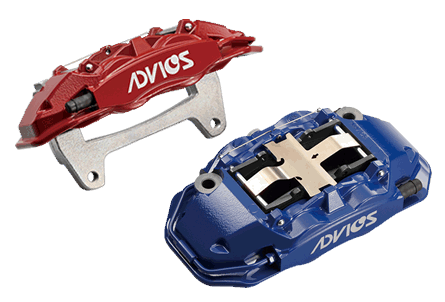

BRAKE CALIPERS

HIGH PERFORMANCE
BRAKE CALIPERS

Aluminum mono-block fixed calipers.

High rigidity
The mono-block structure provides high rigidity.
Light weight
Weight about 35% less than standard 16-inch calipers.
Fr / Rr Description Weight, grams Dimensions, mm
(W x H x D)
Piston diameter, mm
Fr Aluminum mono-block fixed calipers (4 pistons) 2,310 284×71×152 38
Rr Aluminum mono-block fixed calipers (4 pistons) 1,670 206×81×152 43

Fr

Description
Aluminum mono-block calipers with opposed pistons(4pistons)
Weight, grams
2,310
Dimensions, mm
(W x H x D)
284×71×152
Piston diameter, mm
38

Rr

Description
Aluminum mono-block calipers with opposed pistons(2pistons)
Weight, grams
1,670
Dimensions, mm
(W x H x D)
206×81×152
Piston diameter, mm
43

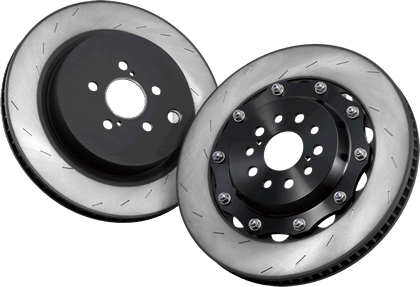

Brake Rotor

HIGH PERFORMANCE
BRAKE ROTORS

Large diameter
Improves the rotor heat capacity, conductivity and dissipation, provides a better brake performance.
Two-piece structure
Front rotors in ADVICS high performance kits feature a free-floating two-piece structure, consisting of cast iron ring and an aluminum bell. This helps to reduce the rotor weight and gradually reduce the risk of deformation as cast iron portion expands radially under high temperatures while aluminum centerpiece remains cool.
Slotted surface
The number and positioning of slots have been optimized to achieve the balance between brake fade performance and pad wear.
Fr / Rr Description Weight, grams Rotor diameter, mm
Fr Two-piece slotted brake rotor 8,100 Φ345-30V
Rr Slotted brake rotor 8,500 Φ330-26V

Fr

Description
Two-piece slotted brake rotor
Weight, grams
8,100
Rotor diameter
Φ345-30V

Rr

Description
Slotted brake rotor
Weight, grams
8,500
Rotor diameter
Φ330-26V

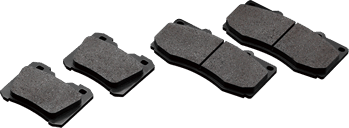

Brake Pad

HIGH PERFORMANCE BRAKE PADS

For details, see the following page.

For detailed information please see the corresponding product page.
*Please note that high performance pads are not included in high performance brake kits and must be purchased separately.
